Schema default_validate.xsd

schema location:	D:\_eLML_25\core\structure\default_validate.xsd
attribute form default:	unqualified
element form default:	qualified
targetNamespace:	http://www.elml.ch

schema location:	D:\_eLML_25\core\structure\elml.xsd
attribute form default:	unqualified
element form default:	qualified
targetNamespace:	http://www.elml.ch

Elements

act

annotation

answer

box

citation

clarify

column

entry

fillInBlanks

formatted

furtherReading

gap

gapText

glossary

goals

index

indexItem

learningObject

lesson

link

list

listOfFigures

listOfTables

lObjective

look

multimedia

multipleChoice

newLine

paragraph

popup

question

selfAssessment

selfCheck

solution

summary

table

term

toc

unit

schema location:	D:\_eLML_25\core\structure\metadata_elml.xsd
attribute form default:	unqualified
element form default:	qualified
targetNamespace:	http://www.elml.ch

Elements

description

educational

keywords

lessonInfo

lifecycle

metadata

organisation

prerequisites

rights

technical

schema location:	D:\_eLML_25\core\structure\biblio_harvard.xsd
attribute form default:	unqualified
element form default:	qualified
targetNamespace:	http://www.elml.ch

Elements

bibliography

book

cdRom

conferencePaper

contributionInBook

eJournals

journalArticle

mailLists

map

newspaperArticle

patent

personalMail

publicationCorporateBody

thesis

videoFilmBroadcast

websites

element act

diagram
type	elml:SType
children	elml:toc elml:column elml:table elml:list elml:box elml:term elml:multimedia elml:popup elml:link elml:citation elml:paragraph elml:selfCheck elml:annotation
used by	element  learningObject
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. title xs:string          documentation The attribute title contains a string representing a title. metaSetUpInfo xs:string optional         documentation The attribute metaSetUpInfo allows to specify what needs to be set up on, for example, an eLearning platform, so that these exercise or self assessement can be done (eg. set up a discussion forum with the topic 'Exercise 1').
annotation	documentation The element act contains the exercises (get active, do something) to a topic in a learningObject.

element annotation

diagram
children	elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:newLine elml:paragraph elml:indexItem elml:table
used by	complexTypes  CLType ColumnType ParaType ParaTypeBox SType
attributes	Name   Type   Use   Default   Fixed   annotation labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson.
annotation	documentation The element annotation can contain additional/background information to a section of a lesson.

element answer

diagram
type	extension of elml:AnswerType
children	elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:newLine elml:indexItem
used by	element  multipleChoice
attributes	Name   Type   Use   Default   Fixed   annotation correct elml:YesNoType required         documentation The required attribute correct allows defining if an answer is the correct one (yes) or if it is a wrong answer designed to trick the student (no). feedback xs:string optional         documentation The optional attribute feedback allows to give the student a short text feedback about his wrong (or correct) choice of answer. It might also contain a hint as to where in the lesson the student might find the correct answer for the question.
annotation	documentation The element answer allows defining one or several answers (one or more correct answers depending on the question type selected) to the question posed.

element box

diagram
type	elml:ParaTypeBox
children	elml:column elml:table elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:newLine elml:paragraph elml:indexItem elml:popup elml:annotation
used by	complexTypes  CLType ColumnType SType TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson. title xs:string          documentation The attribute title contains a string representing a title. icon xs:string          cssClass xs:string optional         visible xs:string
annotation	documentation The element box is a representation element. It is basically the same as the element paragraph but is displayed with a border and background colour.

element citation

diagram
children	elml:term elml:formatted elml:newLine elml:indexItem
used by	elements  annotation glossary/definition list/item gapText paragraph complexTypes  AnswerType CLType ColumnType ParaType ParaTypeBox SType TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation bibIDRef xs:string required         pageNr xs:string          icon xs:string          yearOnly elml:YesNoType          documentation The attribute yearOnly allows defining if a bibliography reference should be made with author name and year of publication or with year of publication only. Default is author name and year of publication (attribute set to 'no'). cssClass xs:string optional
annotation	documentation The element citation allows to markup text as citation from one of the resources listed in the bibliography. See the testlesson to see how this can be done.

element clarify

diagram
type	elml:CLIType
children	elml:toc elml:column elml:table elml:list elml:box elml:term elml:multimedia elml:popup elml:link elml:citation elml:paragraph elml:annotation
used by	element  learningObject
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. title xs:string          documentation The attribute title contains a string representing a title. cssClass xs:string optional
annotation	documentation The element clarify contains the explanations (clarify it) to a topic in a learningObject.

element column

diagram
children	elml:columnLeft elml:columnMiddle elml:columnRight
used by	complexTypes  CLType ParaType ParaTypeBox SType
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson. cssClass xs:string optional         visible xs:string
annotation	documentation The element column is a structure element to structure the page into two or three columns which themselves can contain content.

element column/columnLeft

diagram
type	elml:ColumnType
children	elml:table elml:list elml:box elml:term elml:multimedia elml:formatted elml:popup elml:link elml:citation elml:newLine elml:paragraph elml:indexItem elml:annotation
attributes	Name   Type   Use   Default   Fixed   annotation width xs:positiveInteger          documentation The attribute width allows to specify the width of an image, multimedia object, table, etc. as a positive Number. height xs:positiveInteger          documentation The attribute height allows to specify the height of an image, multimedia object, table, etc. as a positive Number. units derived by: xs:string          documentation The attribute units allows the values pixels or percent. It is used to specify what the units of the numbers specified in the attributes width and height are. align derived by: xs:string          documentation The attribute align allows to specify the horizontal alignment of multimedia objects and content within columns and tables. valign derived by: xs:string          documentation The attribute valign allows to specify the vertical alignment of content within columns and tables. cssClass xs:string optional         label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson.
annotation	documentation The element columnLeft defines the left column and contains content.

element column/columnMiddle

diagram
type	elml:ColumnType
children	elml:table elml:list elml:box elml:term elml:multimedia elml:formatted elml:popup elml:link elml:citation elml:newLine elml:paragraph elml:indexItem elml:annotation
attributes	Name   Type   Use   Default   Fixed   annotation width xs:positiveInteger          documentation The attribute width allows to specify the width of an image, multimedia object, table, etc. as a positive Number. height xs:positiveInteger          documentation The attribute height allows to specify the height of an image, multimedia object, table, etc. as a positive Number. units derived by: xs:string          documentation The attribute units allows the values pixels or percent. It is used to specify what the units of the numbers specified in the attributes width and height are. align derived by: xs:string          documentation The attribute align allows to specify the horizontal alignment of multimedia objects and content within columns and tables. valign derived by: xs:string          documentation The attribute valign allows to specify the vertical alignment of content within columns and tables. cssClass xs:string optional         label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson.
annotation	documentation The element columnMiddle defines the middle column and contains content.

element column/columnRight

diagram
type	elml:ColumnType
children	elml:table elml:list elml:box elml:term elml:multimedia elml:formatted elml:popup elml:link elml:citation elml:newLine elml:paragraph elml:indexItem elml:annotation
attributes	Name   Type   Use   Default   Fixed   annotation width xs:positiveInteger          documentation The attribute width allows to specify the width of an image, multimedia object, table, etc. as a positive Number. height xs:positiveInteger          documentation The attribute height allows to specify the height of an image, multimedia object, table, etc. as a positive Number. units derived by: xs:string          documentation The attribute units allows the values pixels or percent. It is used to specify what the units of the numbers specified in the attributes width and height are. align derived by: xs:string          documentation The attribute align allows to specify the horizontal alignment of multimedia objects and content within columns and tables. valign derived by: xs:string          documentation The attribute valign allows to specify the vertical alignment of content within columns and tables. cssClass xs:string optional         label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson.
annotation	documentation The element columnRight defines the right column and contains content.

element entry

diagram
type	elml:CLType
children	elml:toc elml:column elml:table elml:list elml:box elml:term elml:multimedia elml:popup elml:link elml:citation elml:paragraph elml:annotation
used by	elements  lesson unit
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. title xs:string          documentation The attribute title contains a string representing a title.
annotation	documentation The element entry contains the introduction to a topic on lesson and unit level.

element fillInBlanks

diagram
children	elml:question elml:gapText elml:solution
used by	element  selfCheck
annotation	documentation The element fillInBlanks allows defining a question and a text where the student has to fill in the blank spaces with the correct word(s).

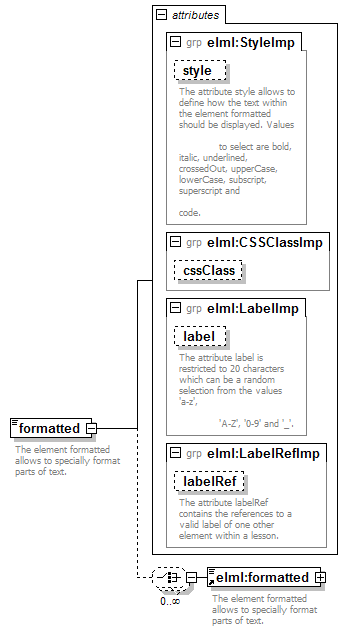

element formatted

diagram
children	elml:formatted
used by	elements  annotation citation glossary/definition list/item formatted gapText lObjective paragraph complexTypes  AnswerType ColumnType ParaType ParaTypeBox TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation style derived by: xs:string optional         documentation The attribute style allows to define how the text within the element formatted should be displayed. Values to select are bold, italic, underlined, crossedOut, upperCase, lowerCase, subscript, superscript and code. cssClass xs:string optional         label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson.
annotation	documentation The element formatted allows to specially format parts of text.

element furtherReading

diagram
children	elml:resItem
used by	elements  lesson unit
attributes	Name   Type   Use   Default   Fixed   annotation sorting xs:string          visible xs:string
annotation	documentation The element furtherReading contains the elements resItem (on lesson and unit level).

element furtherReading/resItem

diagram
type	extension of xs:string
attributes	Name   Type   Use   Default   Fixed   annotation bibIDRef xs:string required         pageNr xs:string
annotation	documentation Each element resItem is the reference to an item in the bibliography which is recommended for the student to read for getting more information about the topic.

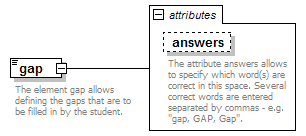

element gap

diagram
type	extension of xs:string
used by	element  gapText
attributes	Name   Type   Use   Default   Fixed   annotation answers xs:string          documentation The attribute answers allows to specify which word(s) are correct in this space. Several correct words are entered separated by commas - e.g. "gap, GAP, Gap".
annotation	documentation The element gap allows defining the gaps that are to be filled in by the student.

attribute gap/@answers

type	xs:string
annotation	documentation The attribute answers allows to specify which word(s) are correct in this space. Several correct words are entered separated by commas - e.g. "gap, GAP, Gap".

element gapText

diagram
children	elml:gap elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:newLine elml:indexItem
used by	element  fillInBlanks
annotation	documentation The element gapText allows defining the text containing the spaces left out for the student to fill in.

element glossary

diagram
children	elml:definition
used by	element  lesson
attributes	Name   Type   Use   Default   Fixed   annotation visible xs:string
annotation	documentation The element glossary is the parent element of all definitions within the glossary.

element glossary/definition

diagram
children	elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:newLine elml:paragraph elml:indexItem elml:table
attributes	Name   Type   Use   Default   Fixed   annotation term xs:string required         documentation The attribute term contains a string with the term which is defined in the element definition. The attribute glossRef references these terms. Characters, Numbers, Blanks, etc. are allowed. bibIDRef xs:string          pageNr xs:string
annotation	documentation Each element definition contains the definition to a specific or new term. The terms and definitions are displayed in the glossary and can be referenced from within the lesson content.

element goals

diagram
children	elml:lObjective
used by	elements  lesson unit
attributes	Name   Type   Use   Default   Fixed   annotation intStatement xs:string          documentation The attribute intStatement may containan introductionary string to the learning objectives. presentation derived by: xs:string          documentation The attribute presentation can be used to set the presentation of the learningObjectives either to list or table.
annotation	documentation The element goals is the parent element of the lObjective elements.

element index

diagram
used by	element  lesson
attributes	Name   Type   Use   Default   Fixed   annotation visible xs:string
annotation	documentation The element index allows to define if an index will be present in the lesson or not. Use it when it should be present and leave it when it should not. When the index is present then also indexItems within the content of the lesson should be defined.

element indexItem

diagram
type	extension of xs:string
used by	elements  annotation citation glossary/definition list/item gapText paragraph complexTypes  AnswerType ColumnType ParaType ParaTypeBox TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation mainEntry elml:YesNoType          documentation The attribute mainEntry allows defining if a index item is the main entry meaning that here is the best description/use of this index item. Default is no. affiliatedTo xs:string          documentation The attribute affiliatedTo allows defining a specific notation of the index item. For example, if the index item is 'houses' then it might be affiliated to 'house' so to have only one notation in the final index. If the attribute is not set then the word(s) marked up as index item are taken for the final index. cssClass xs:string optional
annotation	documentation The element indexItem allows to markup (a) specific word(s) as items for the final index.

element learningObject

diagram
children	elml:clarify elml:look elml:act
used by	element  unit
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. title xs:string required         documentation The attribute title contains a string representing a title. navTitle xs:string          documentation The attribute navTitle contains a string representing a short title that is used for the navigation. The attribute shall be used, when the original title of the lesson, unit or learningObject is too long for the navigation.
annotation	documentation The element learningObject allows to structure the content of a unit in one or more learningObjects. A learningObject contains typically one topic which is explained (clarify part), shown by examples (look part) and learned through exercises (act part). The order of these parts is random and not all parts need to be used mandatorily. The parts my occur zero, one or more times.

element lesson

diagram
children	elml:entry elml:goals elml:unit elml:selfAssessment elml:summary elml:furtherReading elml:glossary elml:bibliography elml:index elml:listOfFigures elml:listOfTables elml:metadata
attributes	Name   Type   Use   Default   Fixed   annotation label xs:string required         title xs:string required         documentation The attribute title contains a string representing a title. navTitle xs:string          documentation The attribute navTitle contains a string representing a short title that is used for the navigation. The attribute shall be used, when the original title of the lesson, unit or learningObject is too long for the navigation.
annotation	documentation The element lesson is the root element of any eLML xml file. To work through a lesson needs typically about 1.5 to 2 hours.

element link

diagram
children	elml:multimedia elml:newLine
used by	elements  annotation glossary/definition list/item gapText paragraph complexTypes  AnswerType CLType ColumnType ParaType ParaTypeBox SType TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation uri xs:anyURI          documentation The attribute uri contains a valid URI. targetLesson elml:PredefinedLabelsType          documentation The attribute targetLesson contains one of the lesson labels defined in the validate.xsd. targetLessonLang elml:LanguageType          documentation The attribute targetLessonLang contains the definition of the language of the target lesson. targetLabel elml:LabelType          documentation The attribute targetLabel contains a label specified within an element within the same lesson (specifies the target element of an internal link). type xs:string          documentation The attribute type contains a string describing the type of a linked element (e.g. pdf for a PDF-Document, or shp for a Shape-File). This is especially useful for links to downloadable material. size xs:string          documentation The attribute size contains the file size of downloadable material (e.g. 7KB or 15MB). target elml:targetType          documentation The attribute target allows to specify if the link should e.g. be openend in a new window (_blank) or in the same window (_top). The attribute allows any strings. If you want to limit the allowed strings (e.g. only '_blank' and '_top') then you'll need to add a xs:redefine section to your validate.xsd file instead of the xs:include sections that includes elml.xsd and redefine the this attribute group as to only allow the specific strings for the attribute target. legend xs:string          documentation The attribute legend contains a string representing an image or other elements legend. icon xs:string          role xs:string          cssClass xs:string optional
annotation	documentation The element link allows to link internally (to other parts of the lesson), externally (to other sources in the internet) or to downloadable material (local on the GITTA server in the multimedia folder or external via the internet/ftp/etc on another server).

element list

diagram
children	elml:item
used by	elements  annotation glossary/definition list/item gapText complexTypes  AnswerType CLType ColumnType ParaType ParaTypeBox SType TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson. title xs:string          documentation The attribute title contains a string representing a title. icon xs:string          listStyle derived by: xs:string          documentation The attribute listStyle allows to specify the type of list. Values to select are ordered (with numbers) or unordered (with symbols). bibIDRef xs:string          pageNr xs:string          cssClass xs:string optional
annotation	documentation The element list defines a list consisting of at least one item.

element list/item

diagram
children	elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:popup elml:newLine elml:paragraph elml:indexItem
attributes	Name   Type   Use   Default   Fixed   annotation cssClass xs:string optional         label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson.
annotation	documentation Each element item contains one list item of a list (one point).

element listOfFigures

diagram
used by	element  lesson
attributes	Name   Type   Use   Default   Fixed   annotation visible xs:string
annotation	documentation The element listOfFigures allows to define if a listOfFigures will be present in the lesson or not. Use it when it should be present and leave it when it should not. When the listOfFigures element is present then also multimedia elements within the content of the lesson should be defined.

element listOfTables

diagram
used by	element  lesson
attributes	Name   Type   Use   Default   Fixed   annotation visible xs:string
annotation	documentation The element listOfTables allows to define if a listOfTables will be present in the lesson or not. Use it when it should be present and leave it when it should not. When the listOfTables element is present then also table elements within the content of the lesson should be defined.

element lObjective

diagram
children	elml:formatted
used by	element  goals
attributes	Name   Type   Use   Default   Fixed   annotation role xs:string
annotation	documentation Each element lObjective contains one learning object which wants to be achieved by studying this lesson or unit.

element look

diagram
type	elml:CLIType
children	elml:toc elml:column elml:table elml:list elml:box elml:term elml:multimedia elml:popup elml:link elml:citation elml:paragraph elml:annotation
used by	element  learningObject
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. title xs:string          documentation The attribute title contains a string representing a title. cssClass xs:string optional
annotation	documentation The element look contains the examples (look at it) to a topic in a learningObject.

element multimedia

diagram
type	restriction of xs:anyType
used by	elements  annotation glossary/definition list/item gapText link paragraph complexTypes  AnswerType CLType ColumnType ParaType ParaTypeBox SType TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson. title xs:string          documentation The attribute title contains a string representing a title. icon xs:string          src xs:anyURI          documentation The attribute src contains the URI to the multimedia file (e.g. ../multimedia/test.jpg). type derived by: xs:string required         documentation The attribute type allows to specify the type of a multimedia element (similar to mime types). Possible values are gif, jpeg, png, flash, svg, quicktime, mpeg, mp3, vrml, x3d, realone, mathml, div and applet. align derived by: xs:string          documentation The attribute align allows to specify the horizontal alignment of multimedia objects and content within columns and tables. width xs:positiveInteger          documentation The attribute width allows to specify the width of an image, multimedia object, table, etc. as a positive Number. height xs:positiveInteger          documentation The attribute height allows to specify the height of an image, multimedia object, table, etc. as a positive Number. units derived by: xs:string          documentation The attribute units allows the values pixels or percent. It is used to specify what the units of the numbers specified in the attributes width and height are. legend xs:string          documentation The attribute legend contains a string representing an image or other elements legend. bibIDRef xs:string          pageNr xs:string          thumbnail xs:anyURI          documentation The attribute thumbnail contains the URI to the thumbnail file (e.g. ../multimedia/test_thumb.jpg) in case an image shall be displayed with a thumbnail. visible xs:string          cssClass xs:string optional
annotation	documentation The element multimedia allows to integrate images, interactions, animations, etc. into the content.

element multipleChoice

diagram
children	elml:question elml:answer elml:solution
used by	element  selfCheck
annotation	documentation The element multipleChoice allows defining a question and a set of answers from which the student can choose the correct one(s) (one or several correct answers possible).

element newLine

diagram
used by	elements  annotation citation glossary/definition list/item gapText link paragraph complexTypes  AnswerType ColumnType ParaType ParaTypeBox TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation space derived by: xs:string          documentation The attribute space allows the values short or long. Short creates a simple line break (equivalent to <br> in HTML) while long starts visually a new paragraph.
annotation	documentation The element newLine allows to insert a short or long line break.

element paragraph

diagram
children	elml:term elml:multimedia elml:formatted elml:link elml:citation elml:newLine elml:indexItem
used by	elements  annotation glossary/definition list/item complexTypes  CLType ColumnType ParaType ParaTypeBox SType TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson. role xs:string          title xs:string          documentation The attribute title contains a string representing a title. icon xs:string          visible xs:string          cssClass xs:string optional
annotation	documentation The element paragraph is a simple paragraph of text.

element popup

diagram
type	elml:ParaType
children	elml:column elml:table elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:newLine elml:paragraph elml:indexItem elml:annotation
used by	element  list/item complexTypes  CLType ColumnType ParaTypeBox SType TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson. title xs:string          documentation The attribute title contains a string representing a title. icon xs:string          cssClass xs:string optional
annotation	documentation The element popup is a representation element. It is basically the same as the element paragraph but is displayed with a border and background colour and is only shown if clicked on the link.

element question

diagram
type	elml:AnswerType
children	elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:newLine elml:indexItem
used by	elements  fillInBlanks multipleChoice
annotation	documentation The element question allows to define the question that should be in direct context of the content of the lesson or unit so far and allow to check if the learning goals have been reached.

element selfAssessment

diagram
type	elml:SIIType
children	elml:toc elml:column elml:table elml:list elml:box elml:term elml:multimedia elml:popup elml:link elml:citation elml:paragraph elml:selfCheck elml:annotation
used by	elements  lesson unit
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. title xs:string          documentation The attribute title contains a string representing a title. metaSetUpInfo xs:string optional         documentation The attribute metaSetUpInfo allows to specify what needs to be set up on, for example, an eLearning platform, so that these exercise or self assessement can be done (eg. set up a discussion forum with the topic 'Exercise 1'). navTitle xs:string          documentation The attribute navTitle contains a string representing a short title that is used for the navigation. The attribute shall be used, when the original title of the lesson, unit or learningObject is too long for the navigation.
annotation	documentation The element selfAssessment contains the exercises which allow to control if the learning objectives were achieved (on lesson and on unit level).

element selfCheck

diagram
children	elml:multipleChoice elml:fillInBlanks
used by	complexType  SType
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. title xs:string          documentation The attribute title contains a string representing a title. category xs:string optional         documentation The optional attribute category can be used to define different levels of questions. How the content of this attribute is handled and what is allowed within is left to the author of the project specific XSLT files. shuffle elml:YesNoType          documentation The attribute shuffle allows defining if the answers to the questions should be (re-)arranged randomly each time the (e.g. html) page is reloaded.
annotation	documentation The element selfCheck allows inserting three types of questions (see subelements for the types possible) for the student to check if the learning goals were reached.

element solution

diagram
type	elml:AnswerType
children	elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:newLine elml:indexItem
used by	elements  fillInBlanks multipleChoice
annotation	documentation The element solution allows specifying the correct solution and maybe giving some background information that explains the answer(s).

element summary

diagram
type	elml:CLIIType
children	elml:toc elml:column elml:table elml:list elml:box elml:term elml:multimedia elml:popup elml:link elml:citation elml:paragraph elml:annotation
used by	elements  lesson unit
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. title xs:string          documentation The attribute title contains a string representing a title. navTitle xs:string          documentation The attribute navTitle contains a string representing a short title that is used for the navigation. The attribute shall be used, when the original title of the lesson, unit or learningObject is too long for the navigation.
annotation	documentation The element summary summarizes the key elements and facts of a lesson or unit.

element table

diagram
children	elml:tablerow
used by	elements  annotation glossary/definition complexTypes  CLType ColumnType ParaType ParaTypeBox SType
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson. title xs:string          documentation The attribute title contains a string representing a title. icon xs:string          width xs:positiveInteger          documentation The attribute width allows to specify the width of an image, multimedia object, table, etc. as a positive Number. height xs:positiveInteger          documentation The attribute height allows to specify the height of an image, multimedia object, table, etc. as a positive Number. units derived by: xs:string          documentation The attribute units allows the values pixels or percent. It is used to specify what the units of the numbers specified in the attributes width and height are. legend xs:string          documentation The attribute legend contains a string representing an image or other elements legend. bibIDRef xs:string          pageNr xs:string          role xs:string          visible xs:string          cssClass xs:string optional
annotation	documentation The element table allows to define a table out of table rows and table cells (table data and table headings).

element table/tablerow

diagram
children	elml:tabledata elml:tableheading
attributes	Name   Type   Use   Default   Fixed   annotation cssClass xs:string optional         label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson.
annotation	documentation Each element tablerow defines one row of a table.

element table/tablerow/tabledata

diagram
type	elml:TableCellType
children	elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:popup elml:box elml:newLine elml:paragraph elml:indexItem
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. width xs:positiveInteger          documentation The attribute width allows to specify the width of an image, multimedia object, table, etc. as a positive Number. height xs:positiveInteger          documentation The attribute height allows to specify the height of an image, multimedia object, table, etc. as a positive Number. units derived by: xs:string          documentation The attribute units allows the values pixels or percent. It is used to specify what the units of the numbers specified in the attributes width and height are. rowspan xs:positiveInteger          documentation The attribute rowspan allows to specify the number of rows that are spanned by this table cell. colspan xs:positiveInteger          documentation The attribute colspan allows to specify the number of columns that are spanned by this table cell. align derived by: xs:string          documentation The attribute align allows to specify the horizontal alignment of multimedia objects and content within columns and tables. valign derived by: xs:string          documentation The attribute valign allows to specify the vertical alignment of content within columns and tables. cssClass xs:string optional         labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson.
annotation	documentation Each element tabledata defines one table data cell of a table.

element table/tablerow/tableheading

diagram
type	elml:TableCellType
children	elml:list elml:term elml:multimedia elml:formatted elml:link elml:citation elml:popup elml:box elml:newLine elml:paragraph elml:indexItem
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType          documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. width xs:positiveInteger          documentation The attribute width allows to specify the width of an image, multimedia object, table, etc. as a positive Number. height xs:positiveInteger          documentation The attribute height allows to specify the height of an image, multimedia object, table, etc. as a positive Number. units derived by: xs:string          documentation The attribute units allows the values pixels or percent. It is used to specify what the units of the numbers specified in the attributes width and height are. rowspan xs:positiveInteger          documentation The attribute rowspan allows to specify the number of rows that are spanned by this table cell. colspan xs:positiveInteger          documentation The attribute colspan allows to specify the number of columns that are spanned by this table cell. align derived by: xs:string          documentation The attribute align allows to specify the horizontal alignment of multimedia objects and content within columns and tables. valign derived by: xs:string          documentation The attribute valign allows to specify the vertical alignment of content within columns and tables. cssClass xs:string optional         labelRef elml:LabelType          documentation The attribute labelRef contains the references to a valid label of one other element within a lesson.
annotation	documentation Each element tableheading defines one table heading cell of a table.

element term

diagram
type	extension of xs:string
used by	elements  annotation citation glossary/definition list/item gapText paragraph complexTypes  AnswerType CLType ColumnType ParaType ParaTypeBox SType TableCellType
attributes	Name   Type   Use   Default   Fixed   annotation glossRef xs:string required         documentation The attribute glossRef allows to specify (for the purpose of referencing) one of the terms specified in the attribute term of the element definition. icon xs:string          cssClass xs:string optional
annotation	documentation The element term allows to reference a glossary definition from within the text (if used beside a paragraph it is displayed as paragraph, if used within a paragraph it is displayed inline).

element toc

diagram
used by	complexTypes  CLType SType
attributes	Name   Type   Use   Default   Fixed   annotation scope derived by: xs:string          documentation The attribute scope defines the scope of the inserted toc. Valid values are lessons, lesson and unit. recurse elml:YesNoType          documentation The attribute recurse allows defining if the toc lists e.g. only the other lessons (toc scope="lessons") or also their units and learningObjects.
annotation	documentation The element toc allows inserting a table of content into all structure elements (ECLASS).

attribute toc/@scope

type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  lessons  enumeration  lesson  enumeration  unit  enumeration  learningObject
annotation	documentation The attribute scope defines the scope of the inserted toc. Valid values are lessons, lesson and unit.

attribute toc/@recurse

type	elml:YesNoType
annotation	documentation The attribute recurse allows defining if the toc lists e.g. only the other lessons (toc scope="lessons") or also their units and learningObjects.

element unit

diagram
children	elml:entry elml:goals elml:learningObject elml:selfAssessment elml:summary elml:furtherReading
used by	element  lesson
attributes	Name   Type   Use   Default   Fixed   annotation label elml:LabelType required         documentation The attribute label is restricted to 20 characters which can be a random selection from the values 'a-z', 'A-Z', '0-9' and '_'. title xs:string required         documentation The attribute title contains a string representing a title. navTitle xs:string          documentation The attribute navTitle contains a string representing a short title that is used for the navigation. The attribute shall be used, when the original title of the lesson, unit or learningObject is too long for the navigation. role xs:string
annotation	documentation The element unit allows to structure the content of a lesson in one or more units.

element description

diagram
type	xs:string
used by	elements  educational/typicalLearningTime rights
annotation	documentation The element description allows to add additional descriptions.

element educational

diagram
children	elml:difficulty elml:typicalLearningTime elml:teachingPurpose elml:learningResourceType
used by	element  lessonInfo
annotation	documentation The element educational is the parent element of the educational aspects of the lesson.

element educational/difficulty

diagram
type	elml:ScaleType
facets	Kind  Value  annotation  enumeration  Medium  enumeration  Low  enumeration  High
annotation	documentation The element difficulty allows to describe the difficulty of the content of the lesson.

element educational/typicalLearningTime

diagram
children	elml:time elml:description
annotation	documentation The element typicalLearningTime describes how long it takes for the student to learn this lesson.

element educational/typicalLearningTime/time

diagram
type	xs:string
annotation	documentation The element time describes how long it takes for the student to learn this lesson (in hours).

element educational/teachingPurpose

diagram
type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  motivation  enumeration  presentation  enumeration  practice  enumeration  assessment
annotation	documentation The purpose for which this learning object can be used in instruction. If the lesson contains several purposes the main purpose should be choosen. The values allowed are motivation, presentation, practice and assessment.

element educational/learningResourceType

diagram
children	elml:source elml:value
annotation	documentation This is an feature from the LOM Standard. Specific kind of learning object. The most dominant kind shall be first. There is more information in the final draft of the LOM standard: http://ltsc.ieee.org/wg12/files/LOM_1484_12_1_v1_Final_Draft.pdf

element educational/learningResourceType/source

diagram
type	xs:string

element educational/learningResourceType/value

diagram
type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  exercise  enumeration  simulation  enumeration  questionnaire  enumeration  diagram  enumeration  figure  enumeration  graph  enumeration  index  enumeration  slide  enumeration  table  enumeration  narrative  enumeration  text  enumeration  exam  enumeration  experiment  enumeration  problem  enumeration  statement  enumeration  selfassessment  enumeration  lecture

element keywords

diagram
children	elml:keywordItem
used by	element  metadata
annotation	documentation The element keywords collects all the keywords of the lesson.

element keywords/keywordItem

diagram
type	xs:string
annotation	documentation Each element keywordItem defines one keyword of the lesson.

element lessonInfo

diagram
children	elml:language elml:lifecycle elml:educational
used by	element  metadata
annotation	documentation The element lessonInfo is the parent element of general information about the lesson.

element lessonInfo/language

diagram
attributes	Name   Type   Use   Default   Fixed   annotation language elml:LanguageType required         documentation The attribute language defines the language in which the lesson is written. Values to select are de, fr, it and en. derived elml:YesNoType required         documentation The attribute derived contains yes if the lesson is translated from another language or no if the value specified in the attribute language is the original language. originalLanguage elml:LanguageType          documentation The attribute originalLanguage is filled in with one of the values de, fr, it or en depending on the original language of the lesson from which this lesson is translated.
annotation	documentation The element language defines the language of the lesson through attributes.

element lifecycle

diagram
children	elml:version elml:contribute elml:implementation elml:commentsNextVersion
used by	element  lessonInfo
annotation	documentation The element lifecycle is the parent element of the lifecycle information about the lesson.

element lifecycle/version

diagram
type	extension of xs:decimal
attributes	Name   Type   Use   Default   Fixed   annotation creationDate xs:date required         documentation The attribute creationDate contains the date of creation of this lesson in the form of Year-Month-Day (e.g. 5th March 2004 would be 2004-03-05). modificationDate xs:date          documentation The attribute modificationDate is updated whenever the lesson is updated. It contains the date of of a modification of this lesson in the form of Year-Month-Day (e.g. 5th March 2004 would be 2004-03-05).
annotation	documentation The element version contains a number with the current version of the lesson.

element lifecycle/contribute

diagram
children	elml:person
annotation	documentation The element contributes acknowledges the contribution of the different authors of a lesson.

element lifecycle/contribute/person

diagram
type	extension of xs:string
attributes	Name   Type   Use   Default   Fixed   annotation responsible derived by: xs:string required         documentation The attribute responsible allows to define what a specific person has done for this lesson. The values to select are Overall (did everything), Concept (did only work on concepts for the lesson), Content (wrote/designed content), Specials (only special things like flashs etc.), Translation (if they've done the translation), Revision (if they've done revisions/updates of the lesson) or Contact (to name a specific contact person for a lesson, who should be contacted before making changes to the lesson). name xs:string required         documentation The attribute name contains a string defining the name of a contributing person. email elml:EmailType required         documentation The attribute email contains a string defining the email address of a contributing person. institute xs:string required         departement xs:string required
annotation	documentation The element person gives detailed account about the different authors of the lesson.

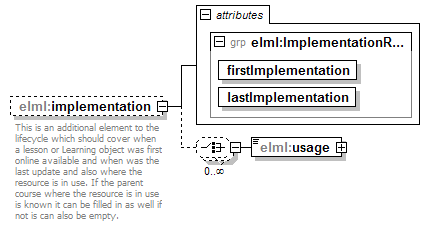

element lifecycle/implementation

diagram
children	elml:usage
attributes	Name   Type   Use   Default   Fixed   annotation firstImplementation xs:date required         lastImplementation xs:date required
annotation	documentation This is an additional element to the lifecycle which should cover when a lesson or Learning object was first online available and when was the last update and also where the resource is in use. If the parent course where the resource is in use is known it can be filled in as well if not is can also be empty.

element lifecycle/implementation/usage

diagram
attributes	Name   Type   Use   Default   Fixed   annotation institute xs:string required         departement xs:string required

element lifecycle/commentsNextVersion

diagram
type	xs:string
annotation	documentation The element commentsNextVersion gives a place where comments can be made what should be included/changed for the next version of the current lesson.

element metadata

diagram
children	elml:organisation elml:prerequisites elml:keywords elml:technical elml:lessonInfo elml:rights
used by	element  lesson
attributes	Name   Type   Use   Default   Fixed   annotation role xs:string          visible xs:string
annotation	documentation The element metadata is the parent element of all metadata information of a lesson.

element organisation

diagram
children	elml:creationPosition
used by	element  metadata
attributes	Name   Type   Use   Default   Fixed   annotation level xs:string required         module xs:string required
annotation	documentation The element organisation contains information about the organisational structure around this lesson.

element organisation/creationPosition

diagram
children	elml:posNumber elml:previous elml:following
annotation	documentation The element creationPosition allows to either define a number which specifies on which position in a sequence this lesson sits or the previous and following lesson.

element organisation/creationPosition/posNumber

diagram
type	xs:positiveInteger
annotation	documentation The element posNumber allows to define a number which specifies on which position in a sequence this lesson sits.

element organisation/creationPosition/previous

diagram
type	elml:PredefinedLabelsType
annotation	documentation The element previous allows to define which is the lesson just before the current lesson in a sequence.

element organisation/creationPosition/following

diagram
type	elml:PredefinedLabelsType
annotation	documentation The element following allows to define which is the lesson just after the current lesson in a sequence.

element prerequisites

diagram
children	elml:preReqItem
used by	element  metadata
annotation	documentation The element prerequisites allows to define what the prerequisites for studying this lesson are.

element prerequisites/preReqItem

diagram
type	extension of xs:string
attributes	Name   Type   Use   Default   Fixed   annotation label xs:string required         priority elml:ScaleType          documentation The attribute priority defines the priority (low, medium, high) by which the mentioned lesson must be studied before attempting the current lesson.
annotation	documentation Each element preReqItem defines one prerequisite.

element rights

diagram
children	elml:cost elml:copyright elml:copyrightURL elml:description elml:contentCopyrights
used by	element  metadata
annotation	documentation The element rights describes legal issues about the current lesson.

element rights/cost

diagram
type	elml:YesNoType
annotation	documentation The element cost allows to define if the lesson costs something for external users.

element rights/copyright

diagram
type	elml:CopyrightType
annotation	documentation The element 'copyright' contains a fixed phrase (defined in the validate.xsd) stating the copyright information for the material created.

element rights/copyrightURL

diagram
type	xs:anyURI
annotation	documentation The element copyrightURL allows the definition of an URL to a location with more information about the legal issues of the current lesson.

element rights/contentCopyrights

diagram
children	elml:copyrightStatement
annotation	documentation The element contentCopyrights allows specifing differing copyright statements for each labelled element within a unit. The respective elements are referenced using the labelRef attribute.

element rights/contentCopyrights/copyrightStatement

diagram
attributes	Name   Type   Use   Default   Fixed   annotation labelRef elml:LabelType required         documentation The attribute labelRef contains the references to a valid label of one other element within a lesson.

element technical

diagram
children	elml:technicalRequirement
used by	element  metadata
annotation	documentation The element technical is the parent element of all technical elements containing technical aspects.

element technical/technicalRequirement

diagram
children	elml:type elml:name elml:minimumVersion elml:downloadURL elml:installationRemarks
annotation	documentation The element technicalRequirement defines the technical prerequisites for studying this lesson.

element technical/technicalRequirement/type

diagram
type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  PlugIn  enumeration  Software  enumeration  Browser  enumeration  OS  enumeration  LMS
annotation	documentation The element type allows to define the type of the prerequisite. Values to select are PlugIn, Software, Browser or OS.

element technical/technicalRequirement/name

diagram
type	xs:string
annotation	documentation The element name contains a string with the name of the technical prerequisit.

element technical/technicalRequirement/minimumVersion

diagram
type	xs:string
annotation	documentation The element minimumVersion contains a string with the minimum version of the technical prerequisit that is needed for the current lesson.

element technical/technicalRequirement/downloadURL

diagram
type	xs:anyURI
annotation	documentation The element downloadURL contains an URL from where the needed prerequisit can be downloaded.

element technical/technicalRequirement/installationRemarks

diagram
type	xs:string
annotation	documentation The element installationRemarks contains a string with any remarks the author of the lesson has to made to the installation of the prerequisit needed.

element bibliography

diagram
children	elml:book elml:contributionInBook elml:journalArticle elml:newspaperArticle elml:map elml:conferencePaper elml:publicationCorporateBody elml:thesis elml:patent elml:videoFilmBroadcast elml:websites elml:eJournals elml:mailLists elml:personalMail elml:cdRom
used by	element  lesson
attributes	Name   Type   Use   Default   Fixed   annotation sorting xs:string          visible xs:string
annotation	documentation The element bibliography is the parent element of all the sources used for the creation of a lesson. The detailed description of all the bibliography elements can be found in the guide at http://www.bournemouth.ac.uk/academic_services/documents/Library/Citing_References.pdf.

element book

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. title xs:string          documentation The attribute title contains the title of a source. edition xs:string          documentation The attribute edition contains the number of the edition of a source. publicationPlace xs:string          documentation The attribute publicationPlace contains the place of publication of a source. publisher xs:string          documentation The attribute publisher contains the name of the publisher of a source. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element book allows to list a book in the bibliography.

element cdRom

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. title xs:string          documentation The attribute title contains the title of a source. edition xs:string          documentation The attribute edition contains the number of the edition of a source. publicationPlace xs:string          documentation The attribute publicationPlace contains the place of publication of a source. publisher xs:string          documentation The attribute publisher contains the name of the publisher of a source. supplier xs:string          documentation The attribute supplier contains the name of the organisation that produced the source. accessedDate xs:string          documentation The attribute accessedDate contains the date when the source was last accessed. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element cdRom allows to list a CD-Rom in the bibliography.

element conferencePaper

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. titleOfContribution xs:string          documentation The attribute titleOfContribution contains the title of a contribution within a source. editor xs:string          documentation The attribute editor contains the name of the editor of a source. proceedingsTitle xs:string          documentation The attribute proceedingsTitle contains the title of the proceedings. datePlace xs:string          documentation The attribute datePlace contains the date and place of a conference. publicationPlace xs:string          documentation The attribute publicationPlace contains the place of publication of a source. publisher xs:string          documentation The attribute publisher contains the name of the publisher of a source. pageNr xs:string          downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element conferencePaper allows to list a conference paper in the bibliography.

element contributionInBook

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. titleOfContribution xs:string          documentation The attribute titleOfContribution contains the title of a contribution within a source. editor xs:string          documentation The attribute editor contains the name of the editor of a source. title xs:string          documentation The attribute title contains the title of a source. publicationPlace xs:string          documentation The attribute publicationPlace contains the place of publication of a source. publisher xs:string          documentation The attribute publisher contains the name of the publisher of a source. pageNr xs:string          downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element contributionInBook allows to list a contribution in a book in the bibliography.

element eJournals

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. title xs:string          documentation The attribute title contains the title of a source. journalTitle xs:string          documentation The attribute journalTitle contains the title of the Journal. volumeNr xs:string          documentation The attribute volumeNr contains the number of the volume of a source. url derived by: xs:anyURI          documentation The attribute url contains the url where one can find the source. accessedDate xs:string          documentation The attribute accessedDate contains the date when the source was last accessed. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element eJournals allows to list an article of an electronic journal in the bibliography.

element journalArticle

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. title xs:string          documentation The attribute title contains the title of a source. journalTitle xs:string          documentation The attribute journalTitle contains the title of the Journal. volumeNr xs:string          documentation The attribute volumeNr contains the number of the volume of a source. pageNr xs:string          downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element journalArticle allows to list a journal article in the bibliography.

element mailLists

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. dayMonthYear xs:string          documentation The attribute dayMonthYear contains the day, the month and the year when source was published (eg. 25th March 2003). subject xs:string          documentation The attribute subject contains the subject of an email source. discussionList xs:string          documentation The attribute discussionList contains the name of the discussion list source. url derived by: xs:anyURI          documentation The attribute url contains the url where one can find the source. accessedDate xs:string          documentation The attribute accessedDate contains the date when the source was last accessed. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element mailLists allows to list an entry of a mail list in the bibliography.

element map

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. title xs:string          documentation The attribute title contains the title of a source. scale xs:string          documentation The attribute scale contains the scale of a map source. publicationPlace xs:string          documentation The attribute publicationPlace contains the place of publication of a source. publisher xs:string          documentation The attribute publisher contains the name of the publisher of a source. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element map allows to list a map in the bibliography.

element newspaperArticle

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. title xs:string          documentation The attribute title contains the title of a source. newspaperTitle xs:string          documentation The attribute newspaperTitle contains the title of the newspaper. dayMonth xs:string          documentation The attribute dayMonth contains the day and the month of publication of a source (eg. 25th March). pageNr xs:string          downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element newspaperArticle allows to list a newspaper article in the bibliography.

element patent

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. title xs:string          documentation The attribute title contains the title of a source. designation xs:string          documentation The attribute designation contains the kind of material. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element patent allows to list a patent in the bibliography.

element personalMail

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. emailSender elml:EmailsType          documentation The attribute emailSender contains the name of the sender of an email source. dayMonthYear xs:string          documentation The attribute dayMonthYear contains the day, the month and the year when source was published (eg. 25th March 2003). subject xs:string          documentation The attribute subject contains the subject of an email source. recipient xs:string          documentation The attribute recipient contains the name of the recipient of an email source. emailRecipient elml:EmailsType          documentation The attribute emailRecipient contains the email address of the recipient of an email source. published derived by: xs:string          documentation The attribute published contains yes if a source is published and no if a source is unpublished. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element personalMail allows to list personal mail contacts in the bibliography.

element publicationCorporateBody

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. title xs:string          documentation The attribute title contains the title of a source. publicationPlace xs:string          documentation The attribute publicationPlace contains the place of publication of a source. publisher xs:string          documentation The attribute publisher contains the name of the publisher of a source. reportNr xs:string          documentation The attribute reportNr contains the number of the report. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element publicationCorporateBody allows to list a publication of a corporate body in the bibliography.

element thesis

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. title xs:string          documentation The attribute title contains the title of a source. designation xs:string          documentation The attribute designation contains the kind of material. type xs:string          documentation The attribute type contains the type of a source. institution xs:string          documentation The attribute institution contains the institiution of production of a source. published derived by: xs:string          documentation The attribute published contains yes if a source is published and no if a source is unpublished. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element thesis allows to list a thesis in the bibliography.

element videoFilmBroadcast

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. title xs:string          documentation The attribute title contains the title of a source. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. designation xs:string          documentation The attribute designation contains the kind of material. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. productionPlace xs:string          documentation The attribute productionPlace contains the place of production of a source. productionOrganisation xs:string          documentation The attribute productionOrganisation contains the name of the organisation that produced the source. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element videoFilmBroadcast allows to list a video, a film or a broadcast in the bibliography.

element websites

diagram
type	extension of xs:string
used by	element  bibliography
attributes	Name   Type   Use   Default   Fixed   annotation bibID xs:string required         documentation The attribute bibID allows giving an unique id to a resource item in the bibliography. Bibliography items are referenced by the values of this attribute. author xs:string          documentation The attribute author contains the name of the author of a source. Author is also used instead of originator and issuingBody. publicationYear xs:gYear          documentation The attribute publicationYear contains the year of publication of a source. title xs:string          documentation The attribute title contains the title of a source. edition xs:string          documentation The attribute edition contains the number of the edition of a source. publicationPlace xs:string          documentation The attribute publicationPlace contains the place of publication of a source. publisher xs:string          documentation The attribute publisher contains the name of the publisher of a source. url derived by: xs:anyURI          documentation The attribute url contains the url where one can find the source. accessedDate xs:string          documentation The attribute accessedDate contains the date when the source was last accessed. downloadUrl derived by: xs:anyURI          documentation The attribute downloadUrl contains the url where one can download a PDF,... of the referenced source document.
annotation	documentation The element websites allows to list a website or electronic resource in the bibliography.

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
