Components overview

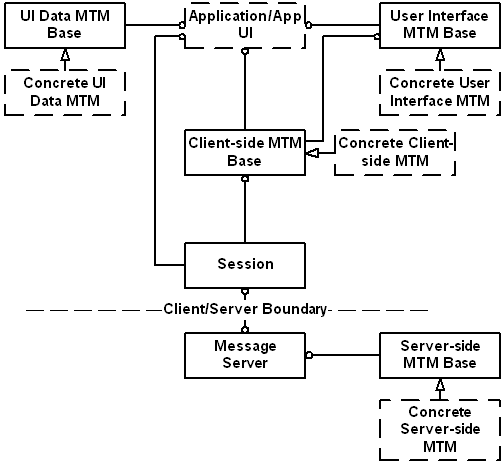

The following figure shows the logical structure of the Messaging Architecture. Dashed boxes indicate components that can be developed by third-parties.

Messaging overview

Messaging overview

Note that no lower-level communication components are shown, as the Messaging Architecture is designed to be independent of any particular communication protocol. Instead, communications libraries are accessed as needed by Server-side MTMs. For example, an SMTP MTM would use TCP/IP, while the SMS MTM would use the Telephony Server (ETel).

The following list summarises the components.


Application/App UI

This represents a message client application.

[Top]


User Interface MTM, Client-side MTM, UI Data MTM, Server-side MTM Bases

These are base classes required for implementing protocol-specific MTM components. User Interface and UI Data MTMs handle user interface functionality and resources. Client-side MTMs provide message data handling functions. Server-side MTMs provide message transport functions.

[Top]


Concrete User Interface MTM, Concrete Client-side MTM, Concrete UI Data MTM, Concrete Server-side MTM

These represent instances of MTM components written to implement a particular messaging protocol.

[Top]


Message Server

The Message Server handles all requests to access or manipulate message data. Where necessary, it passes requests to the protocol-specific message transport components, the Server-side MTMs.

[Top]


Session

Sessions allow client-side components to issue requests to the Message Server. There are a number of classes provided to clients that allow message entries to be manipulated.
