GFXTextureManager Class Reference

#include <gfxTextureManager.h>

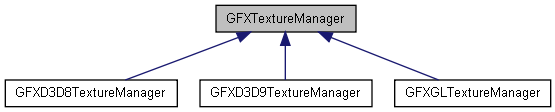

Inheritance diagram for GFXTextureManager:


Public Types
	AA_MATCH_BACKBUFFER = -1
enum	{ AA_MATCH_BACKBUFFER = -1 }
Public Member Functions
	GFXTextureManager ()
virtual	~GFXTextureManager ()
U32	getTotalVideoMemory ()
virtual bool	validateTextureQuality (GFXTextureProfile *profile, U32 &width, U32 &height)
	Update width and height based on available resources.
U32	getBitmapScalePower (GFXTextureProfile *profile)
virtual GFXTextureObject *	createTexture (GBitmap bmp, const String &resourceName, GFXTextureProfile profile, bool deleteBmp)
virtual GFXTextureObject *	createTexture (DDSFile dds, GFXTextureProfile profile, bool deleteDDS)
virtual GFXTextureObject *	createTexture (const Torque::Path &path, GFXTextureProfile *profile)
virtual GFXTextureObject *	createTexture (U32 width, U32 height, void pixels, GFXFormat format, GFXTextureProfile profile)
virtual GFXTextureObject *	createTexture (U32 width, U32 height, U32 depth, void pixels, GFXFormat format, GFXTextureProfile profile)
virtual GFXTextureObject *	createTexture (U32 width, U32 height, GFXFormat format, GFXTextureProfile *profile, U32 numMipLevels, S32 antialiasLevel)
void	deleteTexture (GFXTextureObject *texture)
void	reloadTexture (GFXTextureObject *texture)
void	reloadTextureResource (const char *filename)
Texture Necromancy
Texture necromancy in three easy steps: If you want to destroy the texture manager, call kill(). If you want to switch resolutions, or otherwise reset the device, call zombify(). When you want to bring the manager back from zombie state, call resurrect().
void	kill ()
void	zombify ()
void	resurrect ()
void	registerTexCallback (GFXTexEventCallback, void *userData, S32 &handle)
void	unregisterTexCallback (S32 handle)
Static Public Member Functions
static void	init ()
	Set up some global script interface stuff.
Protected Types
	Living
	Zombie
	Dead
enum	TextureManagerState { Living, Zombie, Dead }
Protected Member Functions
GFXTextureObject *	hashFind (const String &name)
void	hashInsert (GFXTextureObject *object)
void	hashRemove (GFXTextureObject *object)
virtual void	freeTexture (GFXTextureObject *texture, bool zombify=false)
	Frees the API handles to the texture, for D3D this is a release call.
virtual void	refreshTexture (GFXTextureObject *texture)
void	_validateTextureMemory ()
void	_linkTexture (GFXTextureObject *obj)
void	_validateTexParams (const U32 width, const U32 height, const GFXTextureProfile *profile, U32 &inOutNumMips, GFXFormat &inOutFormat)
GFXTextureObject *	_lookupTexture (const char filename, const GFXTextureProfile profile)
GFXTextureObject *	_lookupTexture (const DDSFile ddsFile, const GFXTextureProfile profile)

virtual GFXTextureObject *	_createTexture (U32 height, U32 width, U32 depth, GFXFormat format, GFXTextureProfile *profile, U32 numMipLevels, bool forceMips=false, S32 antialiasLevel=0)=0
	Allocate a texture with the internal API.
virtual bool	_loadTexture (GFXTextureObject texture, DDSFile dds)=0
	Load a texture from a proper DDSFile instance.
virtual bool	_loadTexture (GFXTextureObject texture, GBitmap bmp)=0
	Load data into a texture from a GBitmap using the internal API.
virtual bool	_loadTexture (GFXTextureObject texture, void raw)=0
	Load data into a texture from a raw buffer using the internal API.
virtual bool	_refreshTexture (GFXTextureObject *texture)=0
	Refresh a texture using the internal API.
virtual bool	_freeTexture (GFXTextureObject *texture, bool zombify=false)=0
	Free a texture (but do not delete the GFXTextureObject) using the internal API.
virtual U32	_getTotalVideoMemory ()=0
	Returns available VRAM in bytes.
Protected Attributes
bool	mAboveTextureThreshold
bool	mValidTextureQualityInfo
GFXTextureObject *	mListHead
GFXTextureObject *	mListTail
GFXTextureObject **	mHashTable
U32	mHashCount
enum GFXTextureManager::TextureManagerState	mTextureManagerState
Private Member Functions
void	_resourceFileChanged (ResourceBase::Signature sig, ResourceBase &base, const Torque::Path &path)
Private Attributes
U32	mHandleCount
Vector< CallbackData >	mEventCallbackList
Classes
struct	CallbackData

Member Enumeration Documentation

anonymous enum

Enumerator:

AA_MATCH_BACKBUFFER

enum GFXTextureManager::TextureManagerState [protected]

Enumerator:

Living
Zombie
Dead

Constructor & Destructor Documentation

GFXTextureManager::GFXTextureManager ( )

virtual GFXTextureManager::~GFXTextureManager ( ) [virtual]

Member Function Documentation

static void GFXTextureManager::init ( ) [static]

Set up some global script interface stuff.

U32 GFXTextureManager::getTotalVideoMemory ( ) [inline]

virtual bool GFXTextureManager::validateTextureQuality	(	GFXTextureProfile *	profile,
		U32 &	width,
		U32 &	height
	)			`[virtual]`

Update width and height based on available resources.

We provide a simple interface for managing texture memory usage. Specifically, if the total video memory is below a certain threshold, we scale all texture resolutions down by a specific factor (you can specify different scale factors for different types of textures).

Note:: The base GFXTextureManager class provides all the logic to do this scaling. Subclasses need only implement getTotalVideoMemory().

Parameters:

	type	Type of the requested texture. This is used to determine scaling factors.
	width	Requested width - is changed to the actual width that should be used.
	height	Requested height - is changed to the actual height that should be used.

Returns:: True if the texture request should be granted, false otherwise.

U32 GFXTextureManager::getBitmapScalePower ( GFXTextureProfile * profile )

virtual GFXTextureObject* GFXTextureManager::createTexture	(	GBitmap *	bmp,
		const String &	resourceName,
		GFXTextureProfile *	profile,
		bool	deleteBmp
	)			`[virtual]`

virtual GFXTextureObject* GFXTextureManager::createTexture	(	DDSFile *	dds,
		GFXTextureProfile *	profile,
		bool	deleteDDS
	)			`[virtual]`

virtual GFXTextureObject* GFXTextureManager::createTexture	(	const Torque::Path &	path,
		GFXTextureProfile *	profile
	)			`[virtual]`

virtual GFXTextureObject* GFXTextureManager::createTexture	(	U32	width,
		U32	height,
		void *	pixels,
		GFXFormat	format,
		GFXTextureProfile *	profile
	)			`[virtual]`

virtual GFXTextureObject* GFXTextureManager::createTexture	(	U32	width,
		U32	height,
		U32	depth,
		void *	pixels,
		GFXFormat	format,
		GFXTextureProfile *	profile
	)			`[virtual]`

virtual GFXTextureObject* GFXTextureManager::createTexture	(	U32	width,
		U32	height,
		GFXFormat	format,
		GFXTextureProfile *	profile,
		U32	numMipLevels,
		S32	antialiasLevel
	)			`[virtual]`

void GFXTextureManager::deleteTexture ( GFXTextureObject * texture ) [inline]

void GFXTextureManager::reloadTexture ( GFXTextureObject * texture ) [inline]

void GFXTextureManager::reloadTextureResource ( const char * filename )

void GFXTextureManager::kill ( )

void GFXTextureManager::zombify ( )

void GFXTextureManager::resurrect ( )

void GFXTextureManager::registerTexCallback	(	GFXTexEventCallback	,
		void *	userData,
		S32 &	handle
	)

void GFXTextureManager::unregisterTexCallback ( S32 handle )

GFXTextureObject* GFXTextureManager::hashFind ( const String & name ) [protected]

void GFXTextureManager::hashInsert ( GFXTextureObject * object ) [protected]

void GFXTextureManager::hashRemove ( GFXTextureObject * object ) [protected]

virtual void GFXTextureManager::freeTexture	(	GFXTextureObject *	texture,
		bool	zombify = `false`
	)			`[protected, virtual]`

Frees the API handles to the texture, for D3D this is a release call.

Note:: freeTexture MUST NOT DELETE THE TEXTURE OBJECT

virtual void GFXTextureManager::refreshTexture ( GFXTextureObject * texture ) [protected, virtual]

virtual GFXTextureObject* GFXTextureManager::_createTexture	(	U32	height,
		U32	width,
		U32	depth,
		GFXFormat	format,
		GFXTextureProfile *	profile,
		U32	numMipLevels,
		bool	forceMips = `false`,
		S32	antialiasLevel = `0`
	)			`[protected, pure virtual]`

Allocate a texture with the internal API.

Parameters:

	height	Height of the texture.
	width	Width of the texture.
	depth	Depth of the texture. (Will normally be 1 unless we are doing a cubemap or volumetexture.)
	format	Pixel format of the texture.
	profile	Profile for the texture.
	numMipLevels	If not-NULL, then use that many mips. If NULL create the full mip chain
	antialiasLevel,Use	GFXTextureManager::AA_MATCH_BACKBUFFER to match the backbuffer settings (for render targets that want to share the backbuffer z buffer. 0 for no antialiasing, > 0 for levels that match the GFXVideoMode struct.

Implemented in GFXD3D8TextureManager, GFXD3D9TextureManager, and GFXGLTextureManager.

virtual bool GFXTextureManager::_loadTexture	(	GFXTextureObject *	texture,
		DDSFile *	dds
	)			`[protected, pure virtual]`

Load a texture from a proper DDSFile instance.

Implemented in GFXD3D8TextureManager, GFXD3D9TextureManager, and GFXGLTextureManager.

virtual bool GFXTextureManager::_loadTexture	(	GFXTextureObject *	texture,
		GBitmap *	bmp
	)			`[protected, pure virtual]`

Load data into a texture from a GBitmap using the internal API.

Implemented in GFXD3D8TextureManager, GFXD3D9TextureManager, and GFXGLTextureManager.

virtual bool GFXTextureManager::_loadTexture	(	GFXTextureObject *	texture,
		void *	raw
	)			`[protected, pure virtual]`

Load data into a texture from a raw buffer using the internal API.

Note that the size of the buffer is assumed from the parameters used for this GFXTextureObject's _createTexture call.

Implemented in GFXD3D8TextureManager, GFXD3D9TextureManager, and GFXGLTextureManager.

virtual bool GFXTextureManager::_refreshTexture ( GFXTextureObject * texture ) [protected, pure virtual]

Refresh a texture using the internal API.

Implemented in GFXD3D8TextureManager, GFXD3D9TextureManager, and GFXGLTextureManager.

virtual bool GFXTextureManager::_freeTexture	(	GFXTextureObject *	texture,
		bool	zombify = `false`
	)			`[protected, pure virtual]`

Free a texture (but do not delete the GFXTextureObject) using the internal API.

This is only called during zombification for textures which need it, so you don't need to do any internal safety checks.

Implemented in GFXD3D8TextureManager, GFXD3D9TextureManager, and GFXGLTextureManager.

virtual U32 GFXTextureManager::_getTotalVideoMemory ( ) [protected, pure virtual]

Returns available VRAM in bytes.

Implemented in GFXD3D8TextureManager, GFXD3D9TextureManager, and GFXGLTextureManager.

void GFXTextureManager::_validateTextureMemory ( ) [protected]

void GFXTextureManager::_linkTexture ( GFXTextureObject * obj ) [protected]

void GFXTextureManager::_validateTexParams	(	const U32	width,
		const U32	height,
		const GFXTextureProfile *	profile,
		U32 &	inOutNumMips,
		GFXFormat &	inOutFormat
	)			`[protected]`
