PlatformWindowManager Class Reference

#include <platformWindowMgr.h>

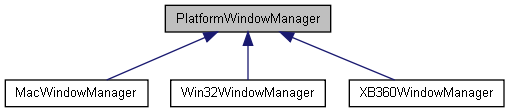

Inheritance diagram for PlatformWindowManager:

Detailed Description

Abstract representation of a manager for native OS windows.

The PlatformWindowManager interface provides a variety of methods for querying the current desktop configuration, as well as allocating and retrieving existing windows. It may also manage application-level event handling.

Public Member Functions

PlatformWindowManager ()

virtual ~PlatformWindowManager ()

virtual RectI getPrimaryDesktopArea ()=0

Return the extents in window coordinates of the primary desktop area.

virtual S32 getDesktopBitDepth ()=0

Retrieve the currently set desktop bit depth.

virtual Point2I getDesktopResolution ()=0

Retrieve the currently set desktop resolution.

virtual void getMonitorRegions (Vector< RectI > &regions)=0

Populate a vector with all monitors and their extents in window space.

virtual PlatformWindow * createWindow (GFXDevice *device, const GFXVideoMode &mode)=0

Create a new window, appropriate for the specified device and mode.

virtual void getWindows (VectorPtr< PlatformWindow * > &windows)=0

Populate a list with references to all the windows created from this manager.

virtual PlatformWindow * getFocusedWindow ()=0

Get the window that currently has the input focus or NULL.

virtual PlatformWindow * getWindowById (WindowId id)=0

Get a window from a device ID.

virtual PlatformWindow * getFirstWindow ()=0

Get the first window in the window list.

virtual void setParentWindow (void *newParent)=0

Set the parent window.

virtual void * getParentWindow ()=0

Get the parent window.

virtual void lowerCurtain ()=0

This method cues the appearance of that window ("lowering the curtain").

virtual void raiseCurtain ()=0

Static Public Member Functions

static PlatformWindowManager * get ()

Get Global Singleton.

static void processCmdLineArgs (const S32 argc, const char **argv)

Protected Member Functions

S32 getNextId ()

Get the next available window Id.

Private Member Functions

virtual void _processCmdLineArgs (const S32 argc, const char **argv)=0

Process command line arguments from StandardMainLoop.

Private Attributes

S32 mIdSource

Constructor & Destructor Documentation

PlatformWindowManager::PlatformWindowManager ( ) [inline]

virtual PlatformWindowManager::~PlatformWindowManager ( ) [inline, virtual]

Member Function Documentation

S32 PlatformWindowManager::getNextId ( ) [inline, protected]

Get the next available window Id.

static PlatformWindowManager* PlatformWindowManager::get ( ) [static]

Get Global Singleton.

static void PlatformWindowManager::processCmdLineArgs	(	const S32	argc,
		const char **	argv
	)			`[static]`

virtual RectI PlatformWindowManager::getPrimaryDesktopArea ( ) [pure virtual]

Return the extents in window coordinates of the primary desktop area.

On a single monitor system this is just the display extents. On a multimon system this is the primary monitor (which Torque should launch on).

Implemented in XB360WindowManager, MacWindowManager, and Win32WindowManager.

virtual S32 PlatformWindowManager::getDesktopBitDepth ( ) [pure virtual]

Retrieve the currently set desktop bit depth.

Returns:: The current desktop bit depth, or -1 if an error occurred

Implemented in XB360WindowManager, MacWindowManager, and Win32WindowManager.

virtual Point2I PlatformWindowManager::getDesktopResolution ( ) [pure virtual]

Retrieve the currently set desktop resolution.

Returns:: The current desktop bit depth, or Point2I(-1,-1) if an error occurred

Implemented in XB360WindowManager, MacWindowManager, and Win32WindowManager.

virtual void PlatformWindowManager::getMonitorRegions ( Vector< RectI > & regions ) [pure virtual]

Populate a vector with all monitors and their extents in window space.

Implemented in XB360WindowManager, MacWindowManager, and Win32WindowManager.

virtual PlatformWindow* PlatformWindowManager::createWindow	(	GFXDevice *	device,
		const GFXVideoMode &	mode
	)			`[pure virtual]`

Create a new window, appropriate for the specified device and mode.

Returns:: Pointer to the new window.

Implemented in XB360WindowManager, MacWindowManager, and Win32WindowManager.

virtual void PlatformWindowManager::getWindows ( VectorPtr< PlatformWindow * > & windows ) [pure virtual]

Populate a list with references to all the windows created from this manager.

Implemented in MacWindowManager, and Win32WindowManager.

virtual PlatformWindow* PlatformWindowManager::getFocusedWindow ( ) [pure virtual]

Get the window that currently has the input focus or NULL.

Implemented in XB360WindowManager, MacWindowManager, and Win32WindowManager.

virtual PlatformWindow* PlatformWindowManager::getWindowById ( WindowId id ) [pure virtual]

Get a window from a device ID.

Returns:: The window associated with the specified ID, or NULL if no match was found.

Implemented in MacWindowManager, and Win32WindowManager.

virtual PlatformWindow* PlatformWindowManager::getFirstWindow ( ) [pure virtual]

Get the first window in the window list.

Returns:: The first window in the list, or NULL if no windows found

Implemented in XB360WindowManager, MacWindowManager, and Win32WindowManager.

virtual void PlatformWindowManager::setParentWindow ( void * newParent ) [pure virtual]

Set the parent window.

This can be used to render in a child window.

Implemented in MacWindowManager, and Win32WindowManager.

virtual void* PlatformWindowManager::getParentWindow ( ) [pure virtual]

Get the parent window.

Implemented in MacWindowManager, and Win32WindowManager.

virtual void PlatformWindowManager::lowerCurtain ( ) [pure virtual]

This method cues the appearance of that window ("lowering the curtain").

Implemented in XB360WindowManager, MacWindowManager, and Win32WindowManager.

virtual void PlatformWindowManager::raiseCurtain ( ) [pure virtual]

See also:: lowerCurtain

This method removes the curtain window.

Implemented in XB360WindowManager, MacWindowManager, and Win32WindowManager.

virtual void PlatformWindowManager::_processCmdLineArgs	(	const S32	argc,
		const char **	argv
	)			`[private, pure virtual]`

Process command line arguments from StandardMainLoop.

This is done to allow web plugin functionality, where we are passed platform-specific information allowing us to set ourselves up in the web browser, to occur in a platform-neutral way.

Implemented in XB360WindowManager, MacWindowManager, and Win32WindowManager.

Member Data Documentation

S32 PlatformWindowManager::mIdSource [private]
