IT_Bus::Reference Class Reference

#include <it_bus/reference.h>

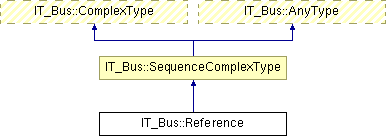

Inheritance diagram for IT_Bus::Reference:

List of all members.

---

Detailed Description

Class representing a reference to a Web service.

Application code typically receives a Reference as part of a message exchange or else resolve ones from a Bus or a Service. A Reference contains all the information necessary in order to create a client proxy to the target Service.

A Reference represents a full Service so it may contain multiple ReferencePorts where each ReferencePort represent a WSDL Endpoint/Port.

Definition at line 291 of file reference.h.

Public Member Functions
	Reference ()
	Constructor.
	Reference (const Reference &copy)
	Copy constructor.
virtual	~Reference ()
	Destructor.
virtual const IT_Bus::QName &	get_type () const
	Returns the IT_Bus::QName for the type.
IT_Bus::ElementListT< IT_Bus::ReferencePort > &	get_port ()
	Returns an list of all ReferencePorts represented by the Service.
const IT_Bus::ElementListT< IT_Bus::ReferencePort > &	get_port () const
	Returns an list of all ReferencePorts represented by the Service.
void	set_port (const IT_Vector< IT_Bus::ReferencePort > &val)
	Allows a user to populate a Reference with the endpoint information by setting the ReferencePorts representing the Service.
IT_Bus::QName &	get_service ()
	Returns the QName of the Service represented by the the Reference.
const IT_Bus::QName &	get_service () const
	Returns the QName of the Service represented by the the Reference.
void	set_service (const IT_Bus::QName &val)
	Allows a user to set the QName of the Service representing the Reference.
IT_Bus::String &	get_wsdl_location ()
	Returns a String which gives the user the location of WSDL that contains the Service meta-data for this Reference.
const IT_Bus::String &	get_wsdl_location () const
	Returns a String which gives the user the location of WSDL that contains the Service meta-data for this Reference.
void	set_wsdl_location (const IT_Bus::String &val)
	Allows the usert to set the String which specifies the location of WSDL for the Service meta-data for this Reference.
virtual IT_Reflect::Reflection *	get_reflection () throw ((IT_Reflect::ReflectException))
	Return an instance of the IT_Reflect::Reflection type that encapsulates this instance.
virtual const IT_Reflect::Reflection *	get_reflection () const throw ((IT_Reflect::ReflectException))
	Return an instance of the IT_Reflect::Reflection type that encapsulates this instance.

---

Member Function Documentation

const IT_Bus::ElementListT<IT_Bus::ReferencePort>& IT_Bus::Reference::get_port (   )  const

Returns an list of all ReferencePorts represented by the Service. Returns: const IT_Bus::ElementListT<IT_Bus::ReferencePort> &

IT_Bus::ElementListT<IT_Bus::ReferencePort>& IT_Bus::Reference::get_port (   )

Returns an list of all ReferencePorts represented by the Service. Returns: IT_Bus::ElementListT<IT_Bus::ReferencePort> &

virtual const IT_Reflect::Reflection* IT_Bus::Reference::get_reflection (   )  const throw ((IT_Reflect::ReflectException)) [virtual]

Return an instance of the IT_Reflect::Reflection type that encapsulates this instance. Returns: IT_Reflect::Reflection Exceptions: IT_Reflect::ReflectException  Reimplemented from IT_Bus::AnyType.

virtual IT_Reflect::Reflection* IT_Bus::Reference::get_reflection (   )  throw ((IT_Reflect::ReflectException)) [virtual]

Return an instance of the IT_Reflect::Reflection type that encapsulates this instance. Returns: IT_Reflect::Reflection Exceptions: IT_Reflect::ReflectException  Reimplemented from IT_Bus::AnyType.

const IT_Bus::QName& IT_Bus::Reference::get_service (   )  const

Returns the QName of the Service represented by the the Reference. This would correspond to the QName in the WSDL Returns: const QName &

IT_Bus::QName& IT_Bus::Reference::get_service (   )

Returns the QName of the Service represented by the the Reference. This would correspond to the QName in the WSDL Returns: QName &

virtual const IT_Bus::QName& IT_Bus::Reference::get_type (   )  const [virtual]

Returns the IT_Bus::QName for the type. Derived subclasses implement this method and return their QName. Returns: IT_Bus::QName. Implements IT_Bus::AnyType.

const IT_Bus::String& IT_Bus::Reference::get_wsdl_location (   )  const

Returns a String which gives the user the location of WSDL that contains the Service meta-data for this Reference. The location is a URL Returns: const String &

IT_Bus::String& IT_Bus::Reference::get_wsdl_location (   )

Returns a String which gives the user the location of WSDL that contains the Service meta-data for this Reference. The location is a URL Returns: String &

void IT_Bus::Reference::set_port (  const IT_Vector< IT_Bus::ReferencePort > &  val  )

Allows a user to populate a Reference with the endpoint information by setting the ReferencePorts representing the Service. Parameters: const  IT_Vector<IT_Bus::ReferencePort> & val

void IT_Bus::Reference::set_service (  const IT_Bus::QName &  val  )

Allows a user to set the QName of the Service representing the Reference. This would correspond to the QName in the WSDL Parameters: const  QName & value

void IT_Bus::Reference::set_wsdl_location (  const IT_Bus::String &  val  )

Allows the usert to set the String which specifies the location of WSDL for the Service meta-data for this Reference. The location can be treated as a URL. Parameters: const  String & val

---
