An application is not complete without proper exception handling in place, this does not need to be complex so it can be very straightforward to model too.

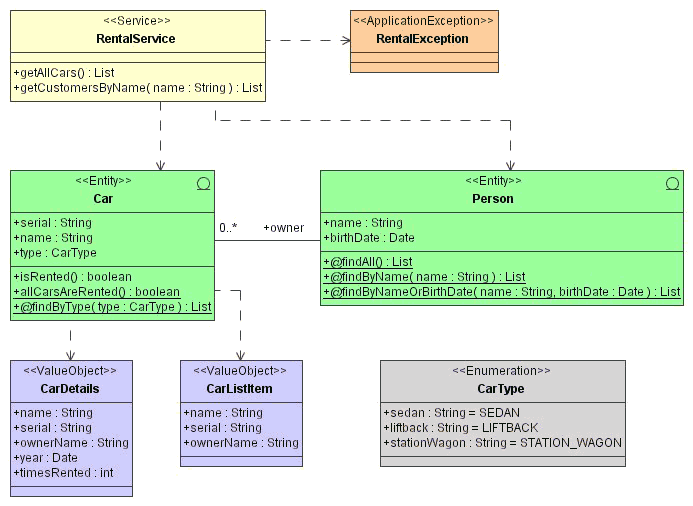

Simply model a class and assign it the <<ApplicationException>> stereotype or the <<UnexpectedException>> stereotype (you will need to enable the Java cartridge for this to work).
Please note that by default an exception will be generated for each service.
The next thing to do is draw a dependency from a <<Entity>> or <<Service>> to this exception, this will make all operations throw this exception. You may choose to have a single operation throw a specific exception by drawing the dependency from that operation to the exception.
Car.hbm.xml
Car.java
CarImpl.java
CarDao.java
CarDaoBase.java
CarDaoImpl.java
CarType.java
Person.hbm.xml
Person.java
PersonImpl.java
PersonDao.java
PersonDaoBase.java
PersonDaoImpl.java
RentalService.java
RentalServiceBase.java
RentalServiceImpl.java
RentalServiceException.java
ejb/RentalService.java
ejb/RentalServiceBean.java
ejb/RentalServiceHome.java
The next section covers the declarative security handling with Acegi, click here to go to that section.
