Graphics compositor
Advanced Programmer
Note
This page requires a basic understanding of graphics pipelines.
The graphics compositor organizes how scenes are rendered. You can use it to customize almost every part of the rendering pipeline. For example, you can:
- use one or multiple cameras
- filter entities in the scene
- render to one or more render textures, with different viewports
- render to a texture used by a material (eg to create a rear-view mirror)
- set HDR or LDR rendering
- apply post effects to a render target, selected before or after rendering a camera
- clear a render target or clear only the depth buffer (eg to always render on top of a render target in a FPS game, or render the UI)
- modify the compositor from scripts (or any animation system), for example to modify post effects
Create a graphics compositor
Xenko includes a graphics compositor when you create a project.

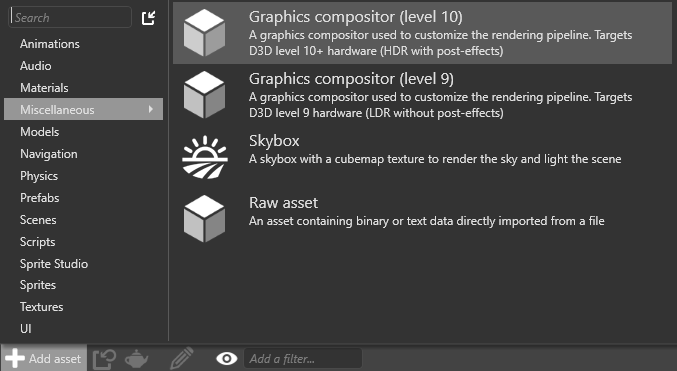

If you need to create a graphics compositor, in the asset view, click Add asset and select Misc > Graphics compositor.
You can choose:
- Level 10 (HDR with post effects)
- Level 9 (LDR with no post effects)
These aren't different kinds of graphics compositor, but rather presets you can customize as you need.
Set the graphics compositor
You can have multiple graphics compositors in your project, but you can only use one compositor at a time. At runtime, Xenko uses the graphics compositor you specify in Game Settings.
You can change which graphics compositor your game uses at runtime in a script.
Open the graphics compositor editor
Note
The graphics compositor editor is an experimental feature.

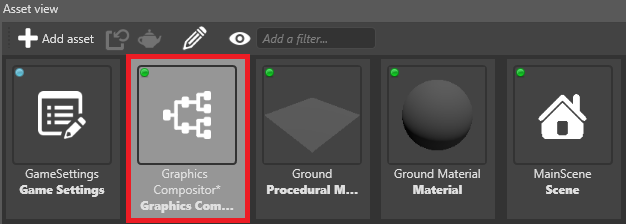

In the asset view (in the bottom pane by default), double-click the Graphics Compositor asset.

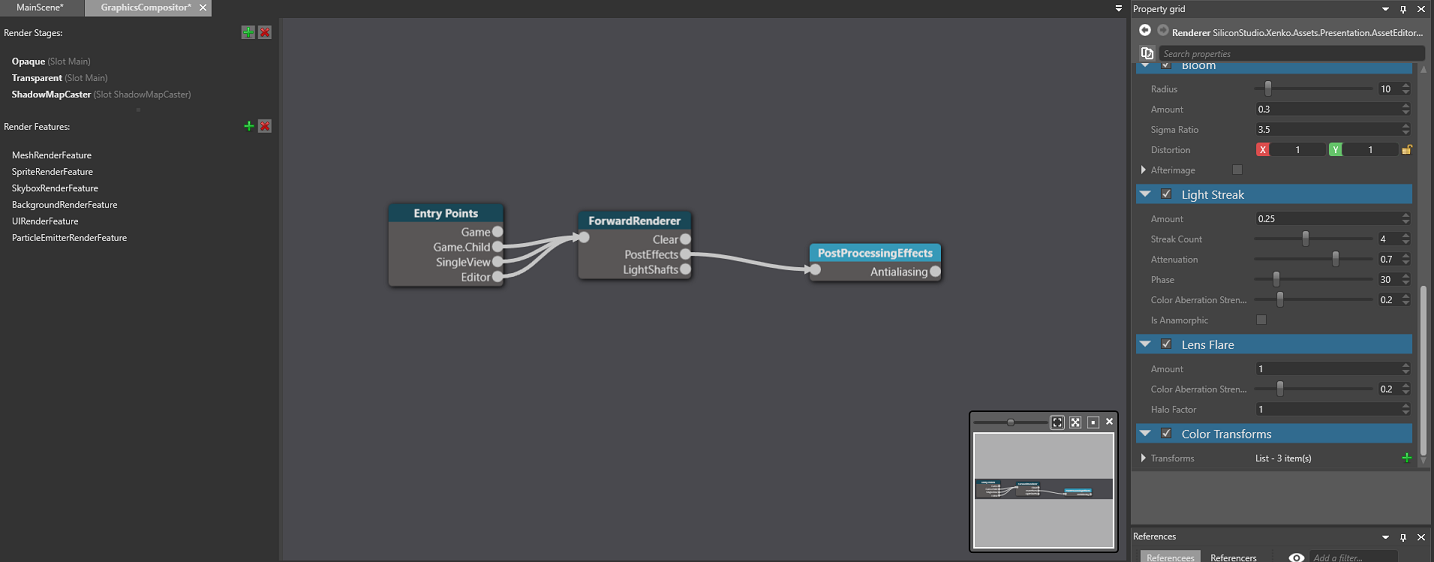

The graphics compositor editor opens.
Nodes
The graphics compositor is divided into nodes. You can set the properties of each node in the property grid on the right.
Entry points

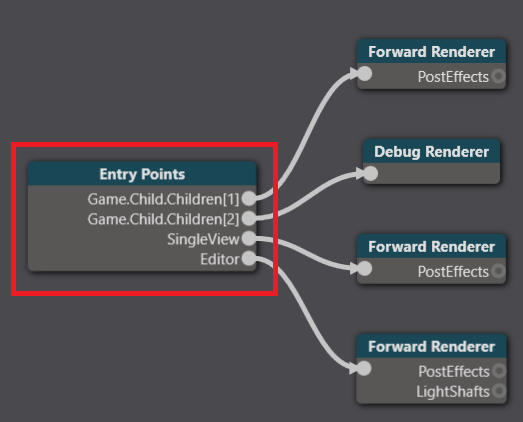

In the Entry Points node, you configure the pipeline for each entry point.
There are three entry points:
- Game, to render your game
- Editor, to render the Game Studio editor
- Single view (referred to as Utility in the property grid), to render other things, such as light probes and cubemaps.
Each entry point can use a separate rendering pipeline. For example, the game and editor might share the same forward renderer and post-processing effects while your single view uses a separate forward renderer.
Connect an entry point to a renderer

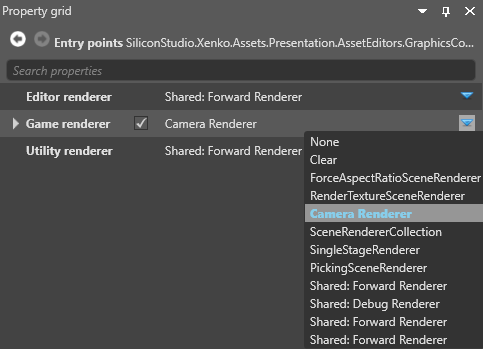

Select the Entry point node.
In the property grid, next to the entry point you want to connect (Editor, Game or Utility), select the renderer you want to connect to.
For information about the different renderers, see Scene renderers.
Forward renderer
In a typical setup, the forward renderer renders almost everything in your scene. It renders, in order:
- opaque objects
- transparent objects
- post effects
The forward renderer is also where you set VR options. For more information, see Virtual reality. You configure the forward renderer properties in the forward entry node.
Debug renderer
The debug renderer is used by scripts to print debug information. For more information, see Debug renderers.
Post-processing effects
The post-processing effects node comes after the forward renderer and controls the post effects in your game. For more information, see post-processing effects.
Create a node
To create a node, right-click the graphics compositor editor and select the type of node you want to create:
