Vehicle Class Reference

#include <vehicle.h>

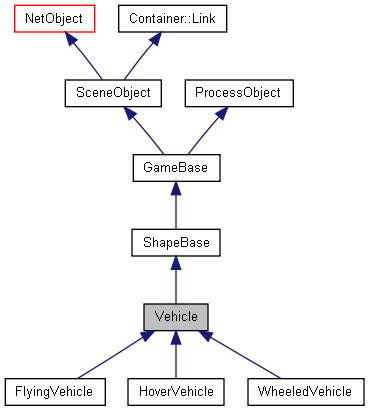

Inheritance diagram for Vehicle:


Public Member Functions
	Vehicle ()
void	processTick (const Move *move)
	Processes a move event and updates object state once every 32 milliseconds.
bool	onAdd ()
	Called when the object is added to the sim.
void	onRemove ()
	Called when the object is removed from the sim.
void	interpolateTick (F32 dt)
	Interpolates between move ticks.
void	advanceTime (F32 dt)
	Advances simulation time for animations.
void	disableCollision ()
	Disables collisions for this vehicle and all mounted objects.
void	enableCollision ()
	Enables collisions for this vehicle and all mounted objects.
Point3F	getVelocity () const
	Returns the velocity of the vehicle.
void	setEnergyLevel (F32 energy)
	Sets the level of energy for this object.
	DECLARE_CONOBJECT (Vehicle)
Rigid body methods
void	getVelocity (const Point3F &r, Point3F *vel)
	This method will get the velocity of the object, taking into account angular velocity.
void	applyImpulse (const Point3F &r, const Point3F &impulse)
	Applies an impulse force.
void	getCameraParameters (F32 min, F32 max, Point3F offset, MatrixF rot)
	Gets the minimum viewing distance, maximum viewing distance, camera offsetand rotation for this object, if the world were to be viewed through its eyes.
void	getCameraTransform (F32 pos, MatrixF mat)
	Gets the camera transform.
void	mountObject (ShapeBase *obj, U32 node)
	Mount an object to a mount point.
Static Public Member Functions
static void	initPersistFields ()
	Register dynamic fields in a subclass of ConsoleObject.
Static Public Attributes
static ClippedPolyList *	sPolyList
static S32	sVehicleCount
Protected Types
	BodyCollision = 0x1
	WheelCollision = 0x2
	PositionMask = Parent::NextFreeMask << 0
	EnergyMask = Parent::NextFreeMask << 1
	NextFreeMask = Parent::NextFreeMask << 2
enum	CollisionFaceFlags { BodyCollision = 0x1, WheelCollision = 0x2 }
enum	MaskBits { PositionMask = Parent::NextFreeMask << 0, EnergyMask = Parent::NextFreeMask << 1, NextFreeMask = Parent::NextFreeMask << 2 }
Protected Member Functions
bool	onNewDataBlock (GameBaseData *dptr)
	Called when a new datablock is set.
void	updatePos (F32 dt)
bool	updateCollision (F32 dt)
bool	resolveCollision (Rigid &ns, CollisionList &cList)
bool	resolveContacts (Rigid &ns, CollisionList &cList, F32 dt)
bool	resolveDisplacement (Rigid &ns, CollisionState *state, F32 dt)
bool	findContacts (Rigid &ns, CollisionList &cList)
void	checkTriggers ()
void	setPosition (const Point3F &pos, const QuatF &rot)
void	setRenderPosition (const Point3F &pos, const QuatF &rot)
void	setTransform (const MatrixF &mat)
	Sets the Object -> World transform.
virtual void	updateMove (const Move *move)
virtual void	updateForces (F32 dt)
void	writePacketData (GameConnection conn, BitStream stream)
	Write state information necessary to perform client side prediction of an object.
void	readPacketData (GameConnection conn, BitStream stream)
	Read data written with writePacketData() and update the object state.
U32	packUpdate (NetConnection conn, U32 mask, BitStream stream)
	Instructs this object to pack its state for transfer over the network.
void	unpackUpdate (NetConnection conn, BitStream stream)
	Instructs this object to read state data previously packed with packUpdate.
void	updateLiftoffDust (F32 dt)
void	updateDamageSmoke (F32 dt)
void	updateWorkingCollisionSet (const U32 mask)
virtual U32	getCollisionMask ()
void	updateFroth (F32 dt)
bool	collidingWithWater (Point3F &waterHeight)
void	renderMountedImage (SceneState state, RenderInst ri)
	Renders a mounted object.
Static Protected Member Functions
static void	findCallback (SceneObject obj, void key)
Protected Attributes
StateDelta	mDelta
S32	mPredictionCount
	Number of ticks to predict.
VehicleData *	mDataBlock
	Datablock.
bool	inLiquid
SFXSource *	mWakeSound
Point3F	mCameraOffset
	3rd person camera
Point2F	mSteering
F32	mThrottle
bool	mJetting
bool	mDisableMove
GFXStateBlockRef	mSolidSB
CollisionList	mCollisionList
CollisionList	mContacts
Rigid	mRigid
ShapeBaseConvex	mConvex
int	restCount
ParticleEmitter *	mDustEmitterList [VehicleData::VC_NUM_DUST_EMITTERS]
ParticleEmitter *	mDamageEmitterList [VehicleData::VC_NUM_DAMAGE_EMITTERS]
ParticleEmitter *	mSplashEmitterList [VehicleData::VC_NUM_SPLASH_EMITTERS]
Private Types
typedef ShapeBase	Parent
Classes
struct	StateDelta

Member Typedef Documentation

typedef ShapeBase Vehicle::Parent [private]

Reimplemented from ShapeBase.

Reimplemented in FlyingVehicle, HoverVehicle, and WheeledVehicle.

Member Enumeration Documentation

enum Vehicle::CollisionFaceFlags [protected]

Enumerator:

BodyCollision
WheelCollision

enum Vehicle::MaskBits [protected]

Enumerator:

PositionMask
EnergyMask
NextFreeMask

Reimplemented in WheeledVehicle.

Constructor & Destructor Documentation

Vehicle::Vehicle ( )

Member Function Documentation

bool Vehicle::onNewDataBlock ( GameBaseData * dptr ) [protected, virtual]

Called when a new datablock is set.

This allows subclasses to appropriately handle new datablocks.

See also:: setDataBlock()

Parameters:

dptr

New datablock

Reimplemented from ShapeBase.

Reimplemented in FlyingVehicle, HoverVehicle, and WheeledVehicle.

void Vehicle::updatePos ( F32 dt ) [protected]

bool Vehicle::updateCollision ( F32 dt ) [protected]

bool Vehicle::resolveCollision	(	Rigid &	ns,
		CollisionList &	cList
	)			`[protected]`

bool Vehicle::resolveContacts	(	Rigid &	ns,
		CollisionList &	cList,
		F32	dt
	)			`[protected]`

bool Vehicle::resolveDisplacement	(	Rigid &	ns,
		CollisionState *	state,
		F32	dt
	)			`[protected]`

bool Vehicle::findContacts	(	Rigid &	ns,
		CollisionList &	cList
	)			`[protected]`

void Vehicle::checkTriggers ( ) [protected]

static void Vehicle::findCallback	(	SceneObject *	obj,
		void *	key
	)			`[static, protected]`

void Vehicle::setPosition	(	const Point3F &	pos,
		const QuatF &	rot
	)			`[protected]`

void Vehicle::setRenderPosition	(	const Point3F &	pos,
		const QuatF &	rot
	)			`[protected]`

void Vehicle::setTransform ( const MatrixF & mat ) [protected, virtual]

Sets the Object -> World transform.

Parameters:

mat

New transform matrix

Reimplemented from SceneObject.

virtual void Vehicle::updateMove ( const Move * move ) [protected, virtual]

Reimplemented in FlyingVehicle, HoverVehicle, and WheeledVehicle.

virtual void Vehicle::updateForces ( F32 dt ) [protected, virtual]

Reimplemented in FlyingVehicle, HoverVehicle, and WheeledVehicle.

void Vehicle::writePacketData	(	GameConnection *	conn,
		BitStream *	stream
	)			`[protected, virtual]`

Write state information necessary to perform client side prediction of an object.

This information is sent only to the controling object. For example, if you are a client controlling a Player, the server uses writePacketData() instead of packUpdate() to generate the data you receive.

Parameters:

	conn	Connection for which we're generating this data.
	stream	Bitstream for output.

Reimplemented from ShapeBase.

Reimplemented in FlyingVehicle, and WheeledVehicle.

void Vehicle::readPacketData	(	GameConnection *	conn,
		BitStream *	stream
	)			`[protected, virtual]`

Read data written with writePacketData() and update the object state.

Parameters:

	conn	Connection for which we're generating this data.
	stream	Bitstream to read.

Reimplemented from ShapeBase.

Reimplemented in FlyingVehicle, and WheeledVehicle.

U32 Vehicle::packUpdate	(	NetConnection *	conn,
		U32	mask,
		BitStream *	stream
	)			`[protected, virtual]`

Instructs this object to pack its state for transfer over the network.

Parameters:

	conn	Net connection being used
	mask	Mask indicating fields to transmit.
	stream	Bitstream to pack data to

Returns:: Any bits which were not dealt with. The value is stored by the networking system. Don't set bits you weren't passed.

Reimplemented from ShapeBase.

Reimplemented in FlyingVehicle, HoverVehicle, and WheeledVehicle.

void Vehicle::unpackUpdate	(	NetConnection *	conn,
		BitStream *	stream
	)			`[protected, virtual]`

Instructs this object to read state data previously packed with packUpdate.

Parameters:

	conn	Net connection being used
	stream	stream to read from

Reimplemented from ShapeBase.

Reimplemented in FlyingVehicle, HoverVehicle, and WheeledVehicle.

void Vehicle::updateLiftoffDust ( F32 dt ) [protected]

void Vehicle::updateDamageSmoke ( F32 dt ) [protected]

void Vehicle::updateWorkingCollisionSet ( const U32 mask ) [protected]

virtual U32 Vehicle::getCollisionMask ( ) [protected, virtual]

Reimplemented in FlyingVehicle, HoverVehicle, and WheeledVehicle.

void Vehicle::updateFroth ( F32 dt ) [protected]

bool Vehicle::collidingWithWater ( Point3F & waterHeight ) [protected]

void Vehicle::renderMountedImage	(	SceneState *	state,
		RenderInst *	ri
	)			`[protected, virtual]`

Renders a mounted object.

Parameters:

	state	State of scene
	ri	RenderInst data

Reimplemented from ShapeBase.

static void Vehicle::initPersistFields ( ) [static]

See also:: addField(), addFieldV(), addDeprecatedField(), addGroup(), endGroup()

Reimplemented from GameBase.

Reimplemented in FlyingVehicle, and WheeledVehicle.

void Vehicle::processTick ( const Move * move ) [virtual]

Processes a move event and updates object state once every 32 milliseconds.

This takes place both on the client and server, every 32 milliseconds (1 tick).

See also:: ProcessList

Parameters:

move

Move event corresponding to this tick, or NULL.

Reimplemented from ShapeBase.

Reimplemented in WheeledVehicle.

bool Vehicle::onAdd ( ) [virtual]

Called when the object is added to the sim.

Reimplemented from ShapeBase.

Reimplemented in FlyingVehicle, HoverVehicle, and WheeledVehicle.

void Vehicle::onRemove ( ) [virtual]

Called when the object is removed from the sim.

Reimplemented from ShapeBase.

Reimplemented in FlyingVehicle, HoverVehicle, and WheeledVehicle.

void Vehicle::interpolateTick ( F32 dt ) [virtual]

Interpolates between move ticks.

See also:: processTick

Parameters:

Change in time between the last call and this call to the function

Reimplemented from GameBase.

void Vehicle::advanceTime ( F32 dt ) [virtual]

Advances simulation time for animations.

This is called every frame.

Parameters:

Time since last advance call

Reimplemented from ShapeBase.

Reimplemented in FlyingVehicle, HoverVehicle, and WheeledVehicle.

void Vehicle::disableCollision ( ) [virtual]

Disables collisions for this vehicle and all mounted objects.

Reimplemented from SceneObject.

void Vehicle::enableCollision ( ) [virtual]

Enables collisions for this vehicle and all mounted objects.

Reimplemented from SceneObject.

Point3F Vehicle::getVelocity ( ) const [virtual]

Returns the velocity of the vehicle.

Reimplemented from SceneObject.

void Vehicle::setEnergyLevel ( F32 energy ) [virtual]

Sets the level of energy for this object.

Parameters:

energy

Level of energy to assign to this object

Reimplemented from ShapeBase.

void Vehicle::getVelocity	(	const Point3F &	r,
		Point3F *	vel
	)

This method will get the velocity of the object, taking into account angular velocity.

Parameters:

	r	Point on the object you want the velocity of, relative to Center of Mass
	vel	Velocity (out)

void Vehicle::applyImpulse	(	const Point3F &	r,
		const Point3F &	impulse
	)			`[virtual]`

Applies an impulse force.

Parameters:

	r	Point on the object to apply impulse to, r is relative to Center of Mass
	impulse	Impulse vector to apply.

Reimplemented from ShapeBase.

void Vehicle::getCameraParameters	(	F32 *	min,
		F32 *	max,
		Point3F *	offset,
		MatrixF *	rot
	)			`[virtual]`

Gets the minimum viewing distance, maximum viewing distance, camera offsetand rotation for this object, if the world were to be viewed through its eyes.

Parameters:
