Torque Game Engine Documentation
TGE Version 1.5.2

Debris Class Reference

#include <debris.h>

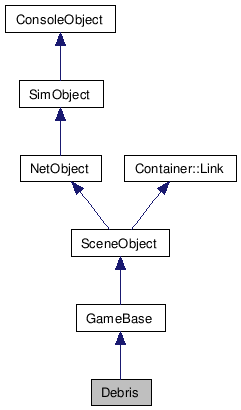

Inheritance diagram for Debris:


Public Member Functions
	Debris ()
	~Debris ()
bool	onNewDataBlock (GameBaseData *dptr)
	Called when a new datablock is set.
void	init (const Point3F &position, const Point3F &velocity)
void	setLifetime (F32 lifetime)
void	setPartInstance (TSPartInstance *part)
void	setSize (F32 size)
void	setVelocity (const Point3F &vel)
	Sets the velocity of the object.
void	setRotAngles (const Point3F &angles)
	DECLARE_CONOBJECT (Debris)
Static Public Member Functions
static void	initPersistFields ()
	Register dynamic fields in a subclass of ConsoleObject.
Protected Member Functions
virtual void	processTick (const Move *move)
	Processes a move event and updates object state once every 32 milliseconds.
virtual void	advanceTime (F32 dt)
	Advances simulation time for animations.
bool	prepRenderImage (SceneState *state, const U32 stateKey, const U32 startZone, const bool modifyBaseZoneState)
	Called when the SceneGraph is ready for the registration of RenderImages.
void	renderObject (SceneState state, SceneRenderImage image)
	Called when the object is supposed to render itself.
bool	onAdd ()
	Called when the object is added to the sim.
void	onRemove ()
	Called when the object is removed from the sim.
void	updateEmitters (Point3F &pos, Point3F &vel, U32 ms)
Private Types
typedef GameBase	Parent
Private Member Functions
bool	bounce (const Point3F &nextPos, F32 dt)
void	computeNewState (Point3F &newPos, Point3F &newVel, F32 dt)
void	explode ()
void	render2D ()
void	rotate (F32 dt)
Private Attributes
S32	mNumBounces
F32	mSize
Point3F	mLastPos
Point3F	mVelocity
F32	mLifetime
DebrisData *	mDataBlock
F32	mElapsedTime
TSShapeInstance *	mShape
TSPartInstance *	mPart
MatrixF	mInitialTrans
F32	mXRotSpeed
F32	mZRotSpeed
Point3F	mRotAngles
F32	mRadius
bool	mStatic
F32	mElasticity
F32	mFriction
ParticleEmitter *	mEmitterList [DebrisData::DDC_NUM_EMITTERS]

Member Typedef Documentation

typedef GameBase Debris::Parent [private]

Reimplemented from GameBase.

Constructor & Destructor Documentation

Debris::Debris ( )

Debris::~Debris ( )

Member Function Documentation

bool Debris::bounce	(	const Point3F &	nextPos,
		F32	dt
	)			`[private]`

void Debris::computeNewState	(	Point3F &	newPos,
		Point3F &	newVel,
		F32	dt
	)			`[private]`

void Debris::explode ( ) [private]

void Debris::render2D ( ) [private]

void Debris::rotate ( F32 dt ) [private]

virtual void Debris::processTick ( const Move * move ) [protected, virtual]

Processes a move event and updates object state once every 32 milliseconds.

This takes place both on the client and server, every 32 milliseconds (1 tick).

See also:: ProcessList

Parameters:

move

Move event corresponding to this tick, or NULL.

Reimplemented from GameBase.

virtual void Debris::advanceTime ( F32 dt ) [protected, virtual]

Advances simulation time for animations.

This is called every frame.

Parameters:

Time since last advance call

Reimplemented from GameBase.

bool Debris::prepRenderImage	(	SceneState *	state,
		const U32	stateKey,
		const U32	startZone,
		const bool	modifyBaseZoneState
	)			`[protected, virtual]`

Called when the SceneGraph is ready for the registration of RenderImages.

See also:: SceneState

Parameters:

	state	SceneState
	stateKey	State key of the current SceneState
	startZone	Base zone index
	modifyBaseZoneState	If true, the object needs to modify the zone state.
